CAT 6 Network

CAT6 NETWORK: ETHERNET PATCH CORD

ETHERNET-PATCH-CORD
ETHERNET-PATCH-CORD
ETHERNET-PATCH-CORD

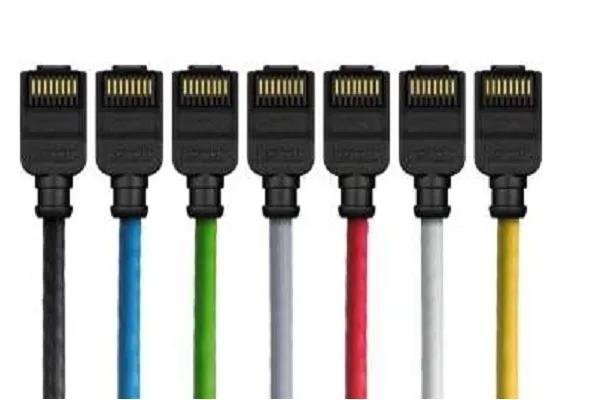

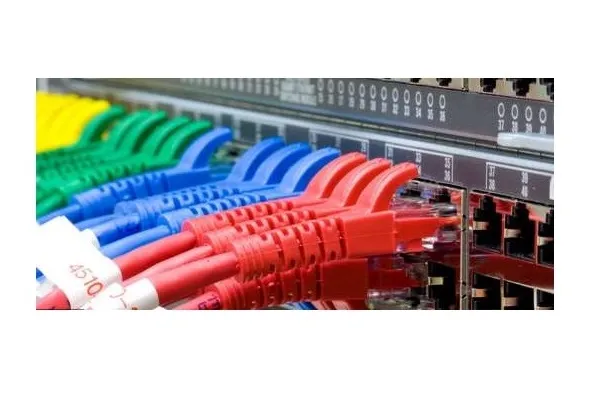

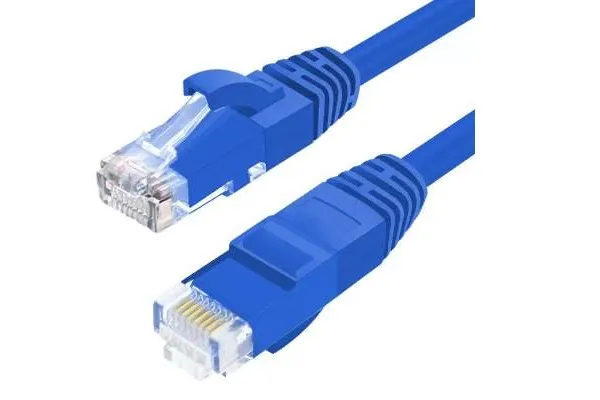

ADROIT AUTOMATION CAT6 Network Patch Cord is a highly flexible, RJ45, slim-profile, stranded 28AWG copper patch cord ideal for the professional and custom installer/integrator. The cable is both highly flexible and ensures signal integrity in general applications. This removes the need for cable replacements due to latch breakage, saving installers time and cable wastage, living up to the promise of Connectivity. Assured. Each unit up to and including 10m is tested to meet the ANSI/TIA-568.2-D component requirements, with 15m, 20m & 30m lengths meeting channel requirements.

In the near future, this business aims to expand its line of products and services and cater to a larger client base. In Pune, this establishment occupies a prominent location in Pune HO. It is an effortless task in commuting to this establishment as there are various modes of transport readily available.

TECHNICAL SPECIFICATIONS:


CONSTRUCTION

  • Conductors: Solid 28 AWG Oxygen Free Stranded Copper
  • Conductor Insulation: Polyolefin
  • Shielding: Not Applicable
  • Cable Jacket Material: UL CM-rated PVC
  • Connector Material: Nylon
  • Contact Type: 3-prong for solid/stranded conductors
  • Strain Relief: Injection-moulded PVC

  • ELECTRICAL CHARACTERISTICS

    • Conductor Resistance: 223Ω/km
    • Insulation Resistance: 10MΩ min @100V DC

    Category 6 Network Patch Cord Specification Standard

    • Application Standards:
            ANSI/TIA-568.2-D
            IEC11802 EN50173
    • Performance Standard:
            ≤ 10.0m - Category 6 Component Tested
            > 10.0m - Category 6 Channel Tested
    • Wiring method: T568-B
    • Certified Data Rate: 1 Gbps (Gigabit ethernet)
    • Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)
    • Certified Bandwidth: 1 to 250 MHz
    • Supported Bandwidth: ≥ 250 MHz

    MECHANICAL

    • Cable Diameter: 28 AWG, 3.9mm/0.15”Ø
    • Maximum Cable Pulling Tension: 80 kgf/cmÇ
    • Cable to Plug Tensile Strength: TBC
    • Cable Bend Radius: 11.7mm | 0.46in
    • Recommended Total Mounting Depth: 27.7mm | 1.09in
    • Mating Cycles (max.): 1000 cycles
    • Temperature range: UL Temp rating - 75ºC
